  1. It's very refreshing not to hear "It's not worth doing your head in by long sessions of planning"! In some ways my design will be easier, by virtue that I won't have a waste tank to worry about. On a share boat I part-owned, the boat tended to list a bit to port anyway. When the tank was full, it ended up with a hideous list to port. I suspect the designers hadn't considered the weight of the full tank. Both my fuel and water tanks will be under the well deck, so the fuel weight will be shifted from its normal position at the stern, which should help with the point you made aboy forward-biased ballasting. Planned capacities are 1000L water, 700L fuel; total full weight 1,630Kg. The fuel will go furthest forward, so the heavier water will be nearer the centre of the boat, thereby creating slightly less differential from full to empty. I think I'll have a go at producing a spreadsheet, with all the main items listed and what %age can be attributed to potential list, and which side it will affect. I should then be able to add up the total weight for each side and work out what the ballast differential will need to be. E.g. the batteries, if on a line a foot or so from the side of the boat, would contribute their entire weight less about one fifth, so it should be about 300Kg * .8 = 240Kg. Then try to work out where the ballast needs to go in terms of forward/aft positioning. The good thing is, with the queue for a build slot, I have at 6 months to ponder these figures! Thanks for your input, it's helped to clarify my thinking.
  2. Thanks! Your first sentence describes what I was trying to say - a bit like one of those old-fashioned sack scales, where you slide the weights along. I don't quite understand the one third/two thirds theory though. Is that to offset the weight of engine, batteries, etc? In all honesty, I hadn't even really started thinking about the fore/aft trim, but it should be easier to trim the bow down, as I will have a lot of storage forward of the well deck. My 60' hull will have a 30" draught at the stern, so probably not much more than your 22" average.
  3. Precisely the kind of scenario I want to try and avoid, if I possibly can! The non-removable flooring is due to the design... the floor will be a sandwich of 18mm WBP, an insulation layer with embedded underfloor heating pipes, then an 18mm engineered oak top layer. Hence the 'difficult access'! The only area which will be easily accessible will be either side of the engine. I have allowed sufficient space under the WBP to fit two 50mm concrete slabs plus a 25mm air gap. So in the 6' engine room, I could fit 6 slabs weighing 250-odd Kg with a weight centreline 300mm from the side of the boat, which would potentially make quite a difference. With the hull builder, we have calculated that a total of 3 tonnes of ballast will be required. This equates to roughly 25 sq. metres of 50mm thick slabs. The main cabin is around 20sq. m, so I will have a total ballast capacity of around 40 sq.m. So this should give me a fair bit of flexibility in terms of where to locate it. Just need to figure out where!
  4. Can I please ask a technical question about ballast and weight distribution? Basically, because of the way the floor is going to be laid, it's going to be quite hard to access the ballast without a lot of extra work. So I'm keen to try and accurately predict the amount of ballast needed and where it needs to go (without ending up with the swims, lockers etc, full of concrete blocks and lumps of old iron!) I'm basically trying to add up the total weights which will be distributed down each side of the boat, but it then occurred to me that location of that weight, relative to the centreline of the boat, is very important too. The basics I can figure out... if I put in 200Kg of batteries hard up against the left side, it stands to reason that if I install 200Kg of ballast hard against the right side, it will balance out. But what if the 200Kg of ballast isn't located as close to the side of the boat as the batteries are? I.e. if that additional weight was spread evenly between the right side and the centre line. It stands to reason that more weight would be required, because the 'leverage' would be less. Is there some sort of formula for working this out, does anyone know? My gut feeling is that you'd need to install 50% more weight if it was spread evenly over the opposite side - i.e. 300Kg slabs to offset the 200Kg batteries. But is that right? And what about if the batteries weren't hard up against the side, but say, 8" in? Is there a way of calculating the various effects? A bit like a balanced see-saw with different weights in different place. This all gets more complicated when I try to work out what impact the cooking range will have! If it's installed with one edge on the centreline and the other against the wall and the total weight is 300Kg; 600 x 600 slabs weight 43Kg and would have a centreline 300mm in from the opposite side. This suggests to me that I wouldn't need as much as 300Kg of slabs to offset the cooker. Then... if I were to offset the 900Kg engine by say, 100mm, what impact would this have? If there is anyone out there who has any knowledge of these calculations, I'd be very grateful for a reply! Thanks.
  5. That would flummox the yobbos who try to untie you in the middle of the night! Would also be unaffected by passing craft...
  6. Did you notice, I deliberately avoided mentioning B** T*******s to avoid invoking a massive debate? I was of course referring to things like hydraulic cutting equipment, like the things the fire brigade use to chop you out of a car. Imagine how handy that would be, when there's a tree across the cut and the chainsaw won't start! Not forgetting a hydraulically-powered windlass. The lift bridges on the Mon & Brec would be a breeze! Might need some long hoses though...
  7. I've just heard back from Wilsons Drive Shafts. The price for two shafts plus two UJ's, flanges, etc, was pretty reasonable at £5-600. BUT... the shaft would be 3" diameter and it would need a support bearing halfway along to support it. So I would be losing nearly half of the possible headroom gain. So it would be a fairly low cost and simple system, but doesn't entirely solve the problem. It will be interesting to see how the hydraulic option matches up. A side benefit of course, is that the pump could also run other hydraulically-powered equipment. More when I have it!
  8. Thanks Tony. I'm looking forward to seeing what ARS come back with. As regards the skin tank, it would be possible to get the builder to put in an additional one for the oil cooling. I guess this would then need a header tank and circulating pump though. However, I think I'm right in saying that a JP3 only runs at about 50C, so the whole system will be running at a lower temp than a modern engine. Having said that, it could have a 'Winter' setting which would divert the hot water to a series of pipes welded to the underside of the counter: underfloor heating for the steerer!
  9. Yes, thanks, I have emailed ARS Anglian to ask for pricing. I suspect it will be relatively expensive and rather more complex.
  10. I have emailed Wilsons Drive Shafts to get a price for the whole thing
  11. Happy to stand corrected. I picked this up from http://www.xrandd.co.uk/ ~ Slipper Stern. Looks like they may be using the term incorrectly! Nice launch, btw!
  12. I agree. They're also a waste of space. Solid steps may take more room but can be boxed in to give useful storage.
  13. Could be. I think that's actually called a slipper stern, but either way, the handling is generally regarded as poor. Apparently OK for rivers, but not canals. My hull will have a S-shape swim of 12' minimum.

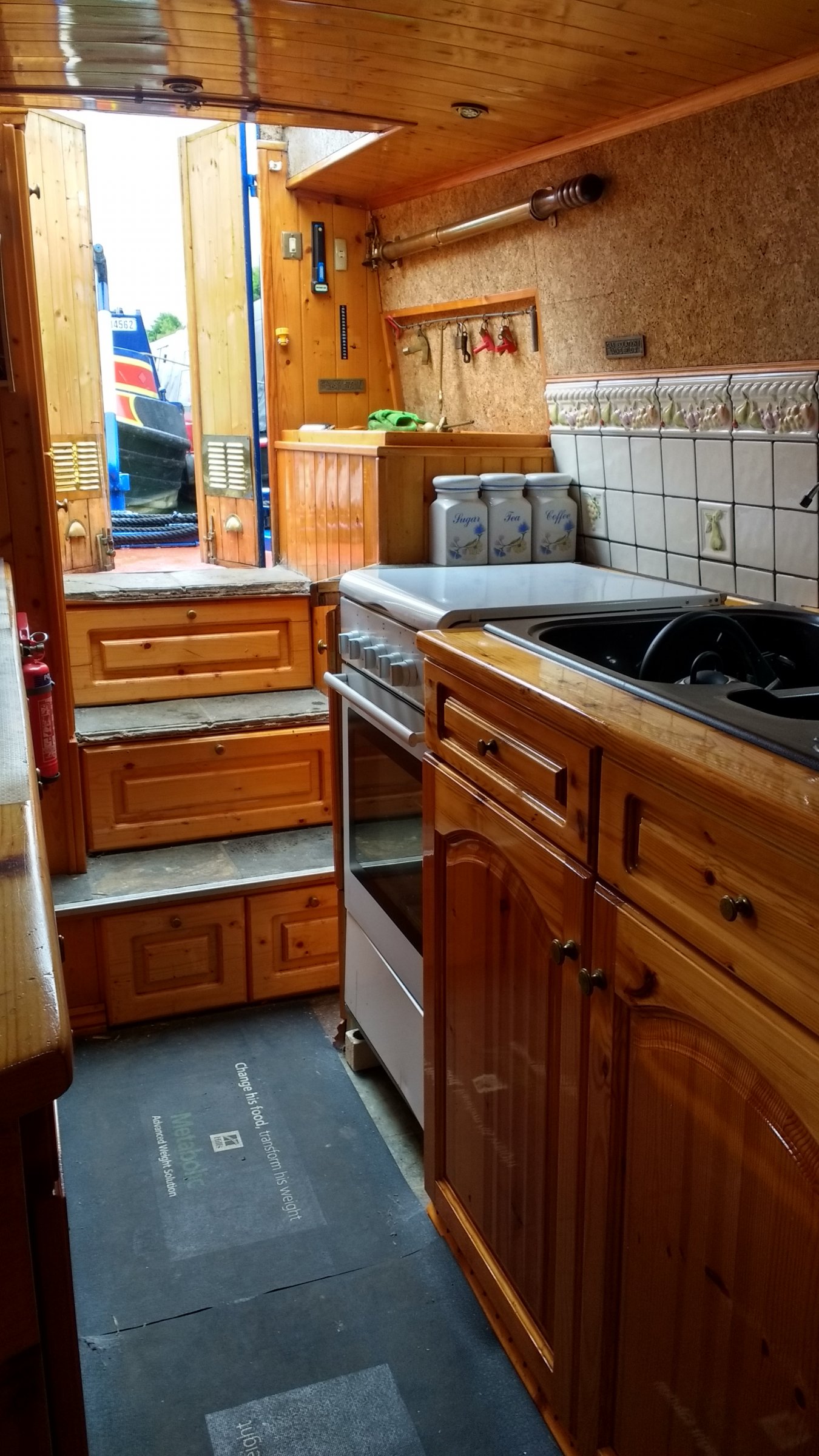

  14. Here is a photo of the boat which started my whole line of thinking about having the galley located where the back cabin is normally situated. However, as you can see, a cooker is about 3' high, so this illustrates the lack of headroom! Interesting to note where they have managed to locate the cooker, in spite of the swim. Shame I couldn't find this when I placed the OP. The second two pictures show another boat with a rear galley, but I think this may have been a semi-trad or cruiser stern - hence no problem with the prop shaft and more headroom.

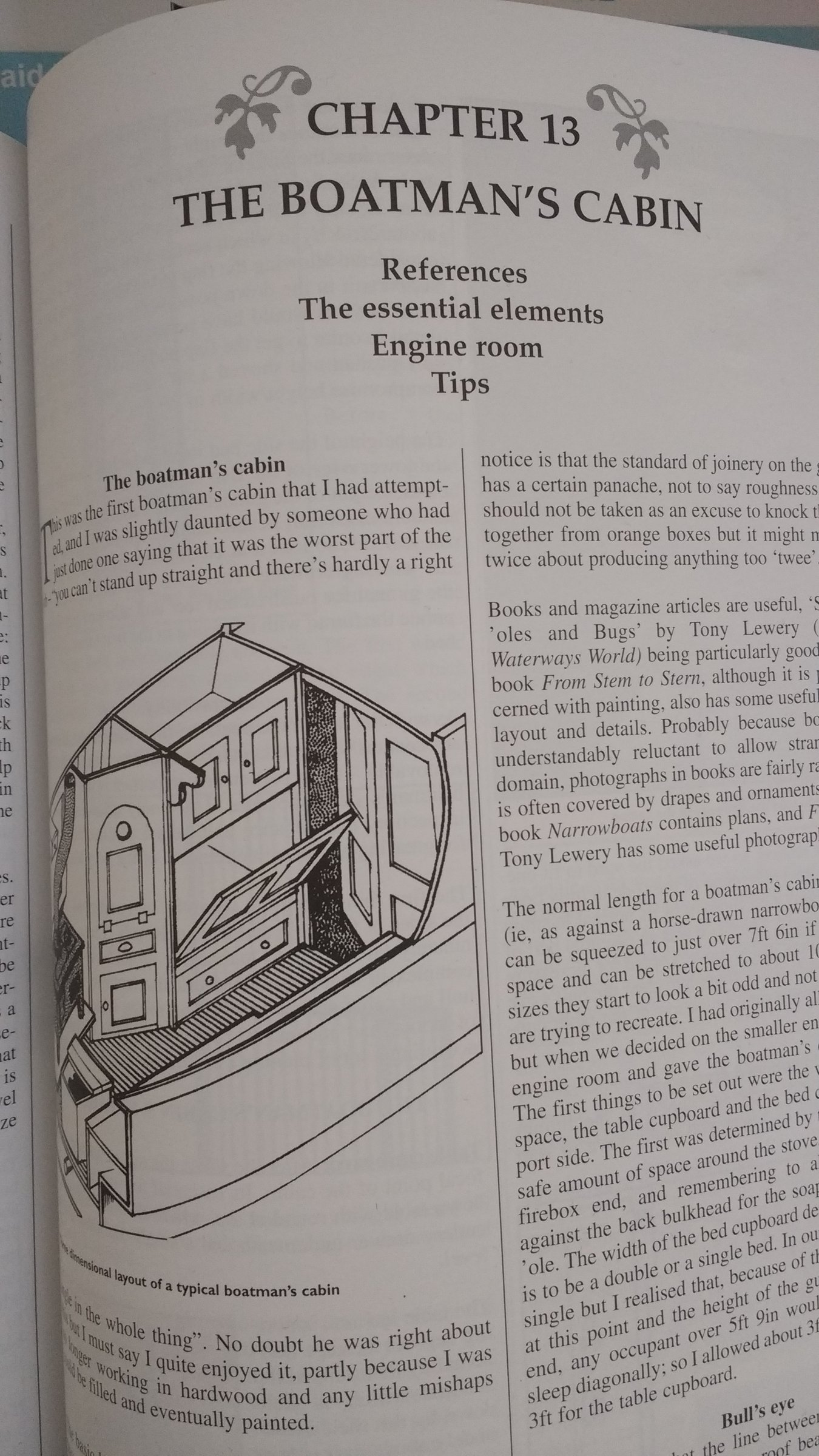

  15. Although not just an invention of boat estate agents... Chapter heading from Graham Booth's Narrow Boat Builders Book!
×
×
